Composite flat boards
Mipolam Troplan PVC

This is a compact single-layer flexible PVC covering (without foam), in abrasion group M, batch dyed, with a directional pattern, calendered and compacted.

The non-woven backing consists only of glass fibre.

This covering meets the requirements of classification U4P3E2/3C2, and is NF / UPEC-Certiffied.

Specific features

Wear resistance: EN 660.1 ≤ 7.5 mm3

Abrasion group: M (medium resistance)

Resistant to chemicals

Fungistatic and bacteriostatic:
Surface treatment: polyurethane (PUR)+ (2013) and Evercare (stainproof) from 2014

NF UPEC Certification: 332-001.1

Cleaning: neutral detergent without “scotch brite”

Description

Total thickness: 2mm

Weight: 3300 g/m²

Board width: 200cm

Board length: 20 ml

Tile size: 608 x 608 mm

Dimensional stability EN 434: boards <0.4/tiles <0.25

All our boards can be machined and edges can be veneered: PVC, ABS, wood

Technical data

Light fastness: > 6 degrees

Residual static impression = 0.03 mm

Fire reaction: class Bfl-s1

Product standard/specification: EN 649

European classification: 34-43

Electrical resistance: > 1 x 109

Thermal conductivity: 0.25 W/(m.K)

Areas of application

Multiple-use surfaces, low traffic
Edges: all our boards can be machined and edges can be veneered with PVC, ABS or wood


Saônoise de tiroirs et contreplaqué

4 Quartier de la Gare du Tram - RD 6
F-70300 Villers-lès-Luxeuil
FRANCE

Email : saonoise@saonoise.com
Phone : +33 3 84 94 50 00
Fax : +33 3 84 94 57 94

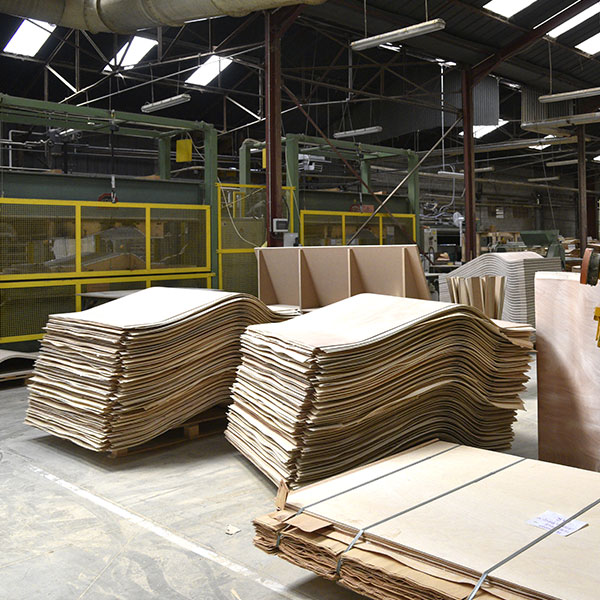

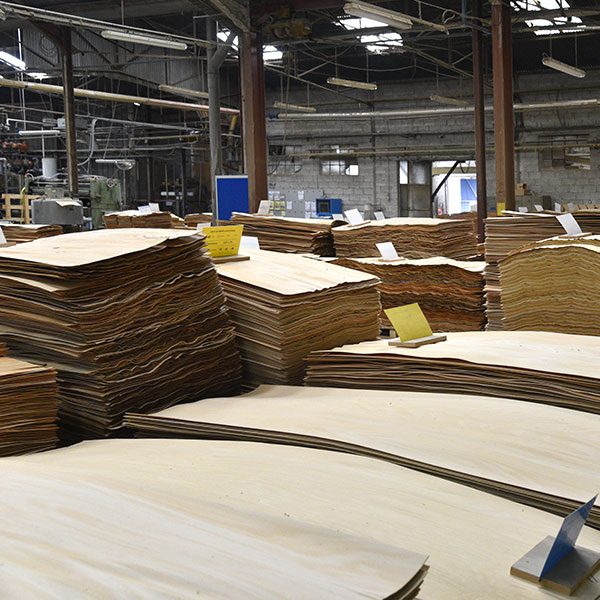

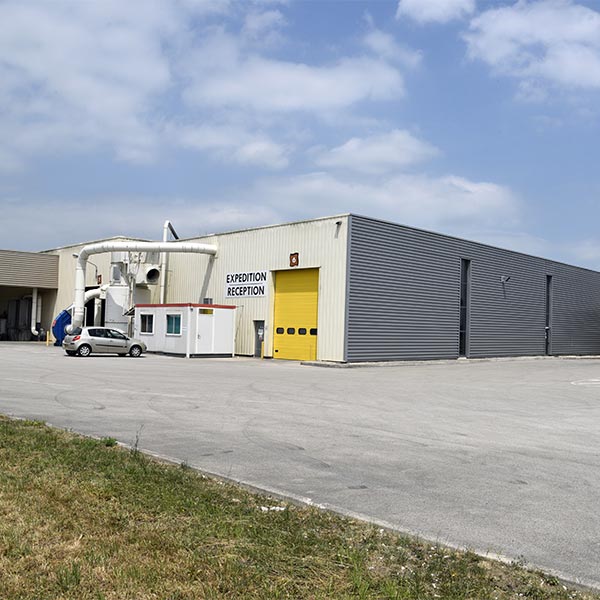

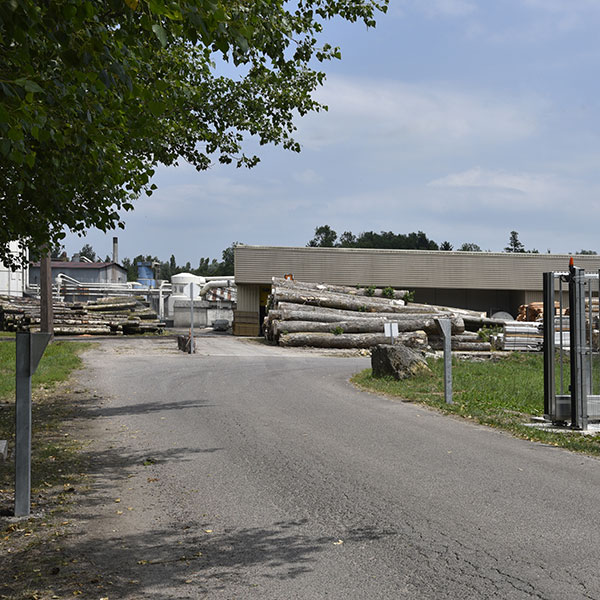

Saônoise in pictures
